YW DKE ट्रेडिंग कंपनी
 |
| ब्रांड नाम: | ASCO |
| प्रमाणन: | CE |
| Model Number: | C113928 |
| Minimum Order Quantity: | 1 |
|---|---|
| मूल्य: | बातचीत योग्य |
| Packaging Details: | Carton |
| Delivery Time: | 1-7Work Days After Payment |
| Payment Terms: | T/T,Western Union,Paypal |
| Supply Ability: | 5000 Pieces/1Month |
| Mounting Hole Size: | 11mm | Product Name: | Pulse Valve Diaphragm |
|---|---|---|---|
| Brand name: | ASCO | Size: | 3'' |
| Material: | NBR Nitrile | Center Distance: | 187mm |
| प्रमुखता देना: | ASCO 3-inch diaphragm repair kit,Pulse valve SCR/SCHE353.060 parts,Dust collector diaphragm replacement |
||
| Name: | C113928 ASCO Type Pulse Valve Diaphragm Repair Kits | Size: | For 3''Pulse Valve |
|---|---|---|---|
| Material: | NBR Nitrile | Suitable Valve Number: | SCEX353.060 |

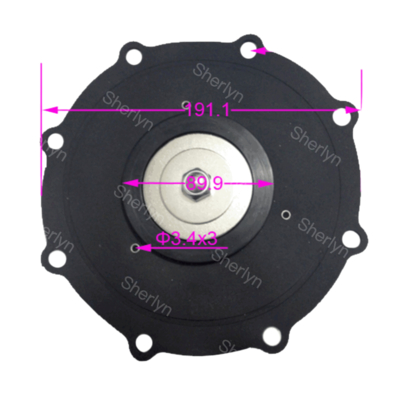

| Mounting Hole Size: | 11mm | Diaphragm Outer Distance: | 190mm |
| Center Distance: | 187mm | Sealing Gasket: | Without |
| Highlight: |
ASCO Diaphragm,ASCO Pulse Valve Diaphragm,ASCO Membrane |
||

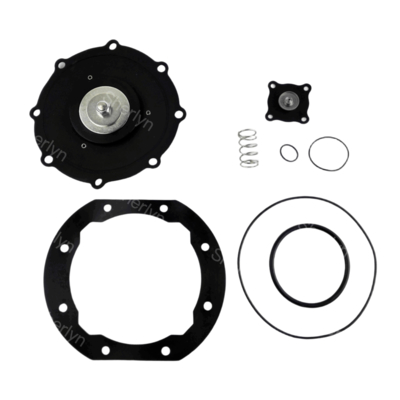

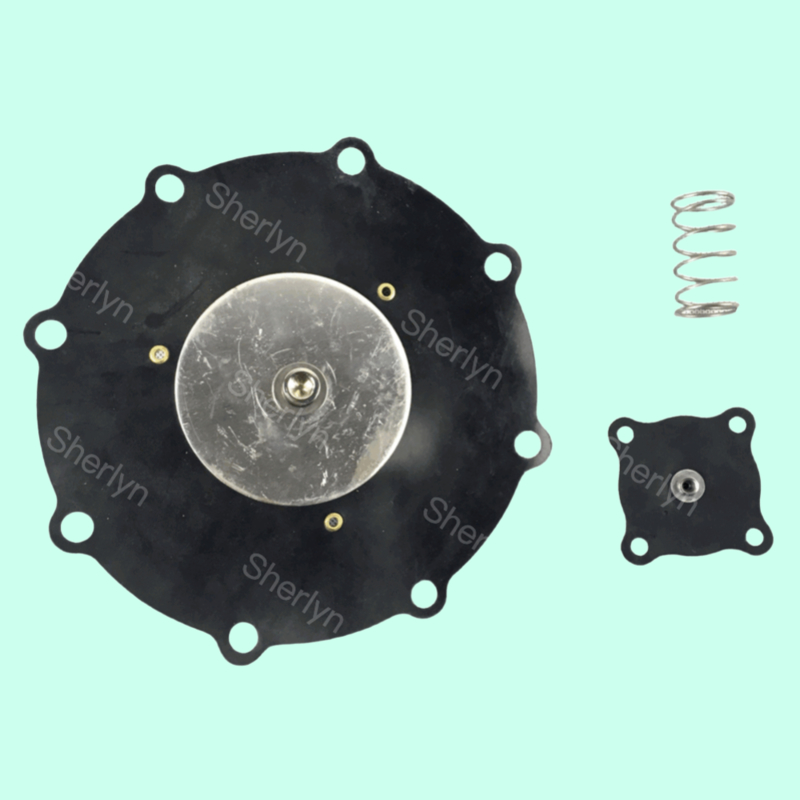

This is ASCO Type C113928 3'' solenoid valve diaphragm repair kits for SCEX353.060 electromagentic pulse jet valve.
Applications:
Function: Control compressed air pulse jet to remove dust accumulated on filter bags
1. Cement Plant: Baghouse at kiln tail (gas temperature < 80℃)
2. Steel Plant: Dedusting at sintering machine head (requires pre-cooler)
3. Wood Processing: Sawdust collection system
Install pulse valves at pipeline blockages, triggering instant airflow impact with C113825 diaphragm (e.g., food-grade calcium carbonate, plastic granule conveying)
Application: Break material arch in coal powder silos/grain silos (operating frequency: ≤30 times/minute)
| Ordering Code | Fitted Valve Code | Valve Port Size | Material |
| C113443 | G353A041, G353A042 | 3/4'', 1'' | TPU/NBR |
| C113444 | SCG353A043, SCG353A044, | 3/4'', 1'' | |
| SCG353-052, SCG353-053 | |||
| C113825 | G353A045 | 1-1/2'' | NBR |
| C113826 | G353A046 | 1-1/2'' | |
| C113827 | SCG353A047, SCG353A065 | 1-1/2'' | |
| C113685 | SCG353A050, SCG353A051 | 2'', 2-1/2'' | |
| C113686 | |||
| C113928 | SCEX353.060 | 3'' | |
| C123432 | SCG353D060, G353.060 | ||
| C123433 | |||
| K096875 (K238864) | 8353C033 | 3/4'' | |
| K200262 (K238866) | G353A041, G353A042, SCG353A043, | ||
| SCG353A044, SCG353-052, SCG353-053 | 1'' | ||
| K276886 (K238870) | G353A045, G353A046, | 1-1/2'' | |
| K276886B | SCG353A047, SCG353A065 | ||
| K276887 | Viton | ||
| Tips: EPDM, FKM All Available. | |||
Our Product Technical Support and Services for the Pulse Valve Diaphragm include:
- Comprehensive troubleshooting guidance for any issues related to the product
- Installation assistance and best practices recommendations
- Regular maintenance tips to ensure optimal performance
- Product training and resources to help users maximize the functionality of the pulse valve diaphragm
- Warranty support and repair services for any manufacturing defects or malfunctions
Product: Pulse Valve Diaphragm
Description: High-quality replacement diaphragm for pulse valves, made from durable and flexible materials.
Packaging: The pulse valve diaphragm is carefully packed in a sturdy cardboard box to ensure safe delivery.
Shipping: We offer worldwide shipping with fast and reliable delivery options. Your order will be shipped within 1-2 business days.
व्यक्ति से संपर्क करें: Sherlyn
दूरभाष: +8613968387107
