YW DKE ट्रेडिंग कंपनी
 |
| ब्रांड नाम: | ASCO |
| प्रमाणन: | CE |
| Model Number: | C113686 |
| Minimum Order Quantity: | 1 |
|---|---|
| मूल्य: | बातचीत योग्य |
| Packaging Details: | Carton |
| Delivery Time: | 1-7Work Days After Payment |
| Payment Terms: | T/T,Western Union,Paypal |
| Supply Ability: | 5000 Pieces/1Month |
| Diaphragm Materia: | Nitrile, Viton | Size: | 2'', 2 1/2'' |
|---|---|---|---|
| Ordering Code: | C113685, C113686, C113-685, C113-686 | Product Name: | Pulse Valve Diaphragm |
| Brand name: | ASCO | Fitted Pulse Valve Model: | SCG353A050, SCG353A051 |
| प्रमुखता देना: | ASCO pulse valve diaphragm repair kit,2.5-inch dust collector diaphragm,SCG353A051 pulse valve accessories |
||
| Product Name: | Pulse Valve Diaphragm | Ordering Code: | C113685, C113686, C113-685, C113-686 |
|---|---|---|---|

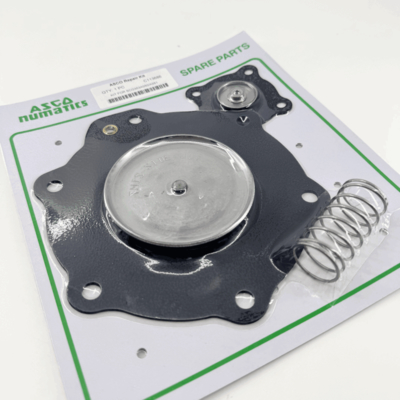

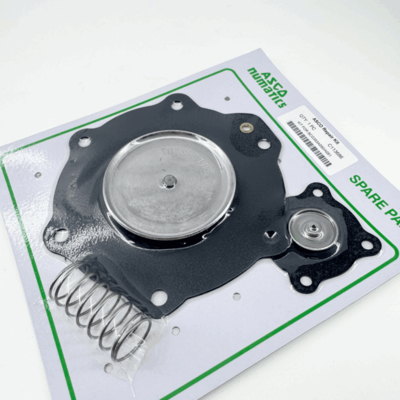

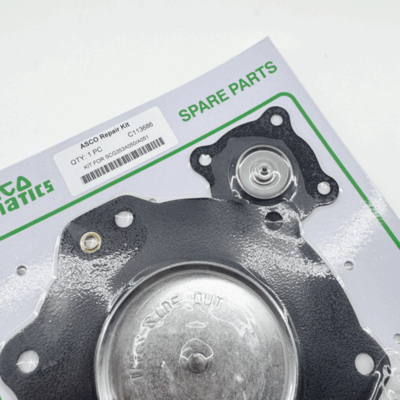

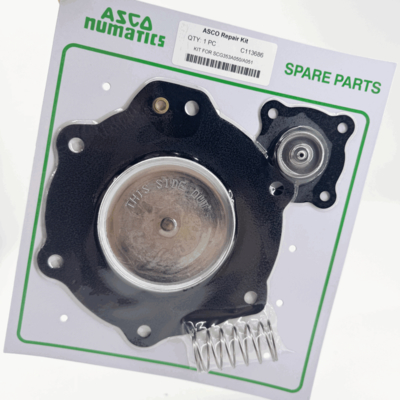

| Diaphragm Material: | Nitrile, Viton | 1 Set: | 1x Big Diaphragm, 1x Small Diaphragm, 1x Spring |
| Fitted Pulse Valve Port Size: | 2'', 2 1/2'' | Fitted Pulse Valve Model: | SCG353A050, SCG353A051 |
| Highlight: |
2'' C113685 Diaphragm Repair Kit,2.5'' C113686 Diaphragm Repair Kit,ASCO C113685 |
||
Function: Control compressed air pulse jetting to remove dust accumulation on filter bags.
Install pulse valves at blockage points in pipelines to trigger momentary air flow impact using C113825 diaphragms for clearance (e.g., food-grade calcium carbonate, plastic pellet conveying).
Break material arches in coal powder bins/grain silos (operating frequency: ≤30 times/minute).
valve.
Ordering Number of Diaphragm For ASCO Pulse Valve:
| Valve Port Size | Pulse Valve Model | Diaphragm Model | Diaphragm Material |
| (FKM is also available) | |||
| 3/4'' | SCG353A043 | C113444 | TPE (White), NBR (Black) |
| 1'' | SCG353A044 | ||
| 3/4'' | SCG353-052 | ||
| 1'' | SCG353-053 | ||
| 3/4'' | SGG353A043 | ||
| 1'' | SGG353A044 | ||
| 3/4'' | SGG353-052 | ||
| 1'' | SGG353-053 | ||
| 1 1/2'' | SCG353A047 | C113827 | NBR |
| SGG353A065 | |||
| 2'' | SCG353A050 | C113685, C113686 | NBR |
| 2 1/2'' | SCG353A051 | ||
| 3'' | SCXE353.060 | C123432, C123433 | NBR |
| SCG353D060 | |||
| 3/4'' | G3530A41 | C113443 | NBR |
| 1'' | G353A042 | ||
| 3/4'' | G353-055 | ||
| 1'' | G353-056 | ||
| 1 1/2'' | G353A045 | C113825 | NBR |
| G353-066 | |||
| 1 1/2'' | G353A046 | C113826 | NBR |
| G353A063 | |||
| 2'' | G353A048 | C113684 | NBR |
| 2 1/2'' | G353A049 |
Our Product Technical Support and Services for the Pulse Valve Diaphragm include:
- Installation guidance and support
- Troubleshooting assistance for any operational issues
- Maintenance recommendations to ensure optimal performance
- Product training and user manuals for easy usage
- Warranty coverage and repair services
Product Name: Pulse Valve Diaphragm
Description: High-quality diaphragm for pulse valves, made of durable material for long-lasting performance.
Package Includes: 1 Pulse Valve Diaphragm
Package Dimensions: 5 x 5 x 1 inches
Shipping Method: Standard Shipping
