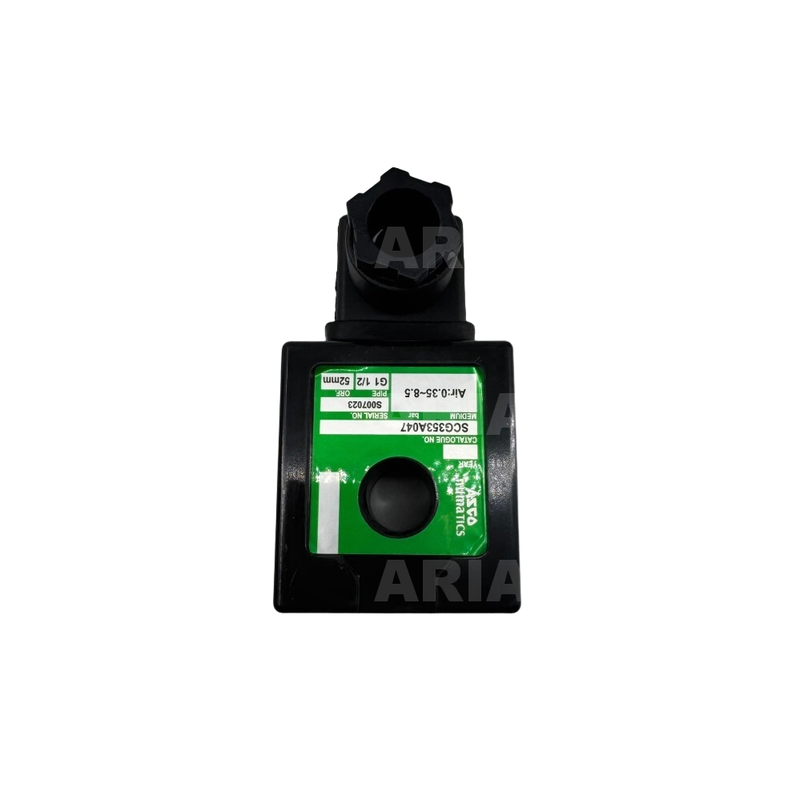

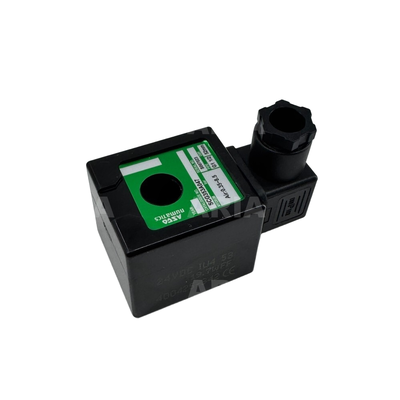

400425-142 DC24V ASCO Solenoid Valve COIL With Molded Shell IP65 Protection Level Durable

Product Description:

Features:

The ASCO Pulse Valve Coil, originally manufactured in the United States, guarantees superior quality and meets the stringent IEC 335 electrical safety standards. This product is designed to provide reliable and efficient control for various industrial applications.

The coil is available in two main series: the 400425 Series and the 400325 Series, each engineered to suit different operational requirements.

Its primary function is to control the start and stop operations of pulse valves, enabling precise on-off control and pulse jet regulation. This makes it ideal for equipment such as pulse dust removal systems, where exact control is imperative.

Classified under Insulation Class F (up to 155℃), the coil boasts excellent insulation properties that effectively prevent leakage hazards, ensuring the safe operation of associated machinery. Additionally, the coil is encased in a molded shell rated IP65, making it both waterproof and dustproof. This robust protection allows it to perform reliably in harsh and challenging industrial environments, safeguarding against damage from dust and moisture.

The coil operates efficiently within a wide temperature range from -40℃ to +60℃ (-40°F to 140°F), allowing stable performance even under extreme temperature conditions. It features a flat plug electrical interface compatible with cable diameters of 6-8mm and complies with the DIN 46244 standard for easy and secure wiring.

Constructed with high-quality coil windings and sealing materials, the ASCO Pulse Valve Coil is both wear-resistant and loss-resistant, ensuring a long service life and minimizing maintenance interruptions due to frequent replacements. Its design allows for straightforward installation, being fully compatible with corresponding ASCO series pulse valves. It can be quickly connected without complex adjustments and installed in any orientation without impacting its operation.

This pulse valve coil is widely utilized across various industries including environmental protection for dust removal systems (such as pulse jet dust collectors), chemical fluid control, metallurgy, rubber manufacturing, flour processing, pharmaceuticals, carbon production, building materials, and mining. It is particularly suitable for local dust source removal and diverse fluid control equipment.

Technical Parameters:

Applications:

Before beginning the installation process, please verify that the coil model and its rated voltage match the specifications of the pulse valve model and the equipment’s voltage requirements. This step is crucial to prevent coil burnout or potential equipment failure caused by any voltage discrepancies.

During installation, make sure all wiring connections are secure and firmly attached to avoid poor contact. Proper insulation protection should be applied carefully to eliminate safety risks such as electrical leakage or short circuits. Additionally, all wiring must adhere strictly to established electrical safety standards.

When using the coil, avoid exposing it to high temperatures, humidity, or dusty environments for extended periods. Regularly clean the coil surface to remove any accumulated dust, which helps prolong its lifespan. In particularly harsh conditions, consider implementing extra protective measures to safeguard the coil.

If the coil exhibits any signs of malfunction, such as abnormal heating, unusual noise, or operational failure, immediately disconnect the power and perform an inspection to prevent further damage to the equipment. It is highly recommended to replace the coil only with an original part of the same model and avoid using non-original components.

For storage, store the coil in a dry, well-ventilated, and cool location. Avoid exposure to direct sunlight, rain, or physical pressure to prevent moisture absorption, deformation, or damage to the coil.

Packing and Shipping:

The ASCO Solenoid Valve is carefully packaged to ensure maximum protection during transit. Each valve is individually sealed in anti-static, moisture-resistant packaging to prevent damage from environmental factors. The product is then placed in a sturdy, cushioned box designed to absorb shocks and vibrations.

For shipping, ASCO Solenoid Valves are securely packed in reinforced cartons with appropriate labeling for easy identification and handling. We use reliable carriers to guarantee timely and safe delivery to your specified location. Tracking information is provided for all shipments to keep you informed throughout the delivery process.
